LPA83 Series

Modern Ultra-Slim Full-Motion TV Wall Mounts

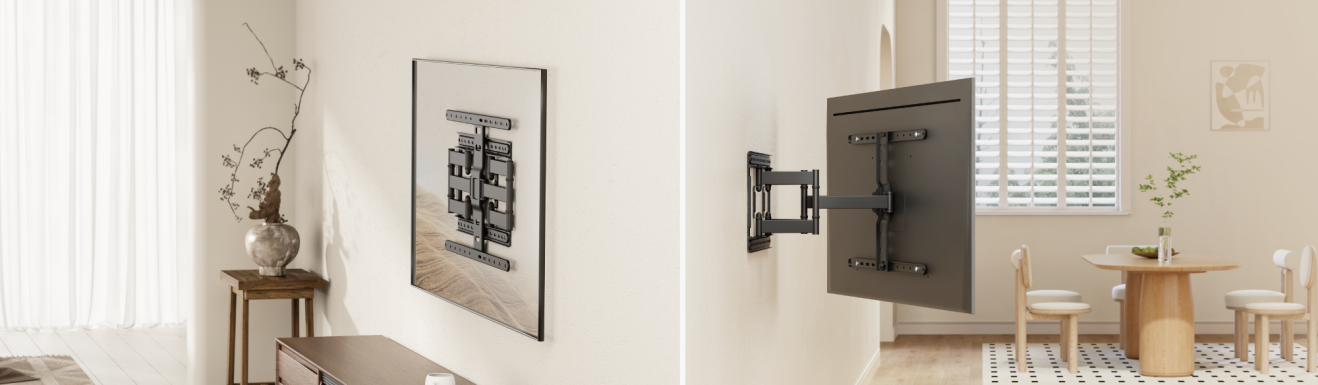

Modern Ultra-Slim Full-Motion TV Wall Mounts LPA83 Series
LPA83-446
Modern Ultra-Slim Full-Motion TV Wall Mount Modern Ultra-Slim Full-Motion TV Wall Mount
  • Fit Screen Size: 37"-75"
  • VESA Compatible: 100x200, 200x200, 200x300, 300x200, 200x400, 400x200, 300x300, 300x400, 400x300, 400x400
  • Weight Capacity: 60kg (132lbs)
  • Strength Tested: 4 Times Approved
  • Profile: 27~420mm (1.1"~16.5")
  • Tilt Range: +3°~-12°
  • Swivel Range: +60°~-60°
  • Screen Level: +3°~-3°
LPA83-466
Modern Ultra-Slim Full-Motion TV Wall Mount Modern Ultra-Slim Full-Motion TV Wall Mount
  • Fit Screen Size: 43"-90"
  • VESA Compatible: 100x200, 200x200, 200x300, 300x200, 200x400, 400x200, 300x300, 300x400, 400x300, 600x200, 400x400, 600x300, 600x400
  • Weight Capacity: 60kg (132lbs)
  • Strength Tested: 4 Times Approved
  • Profile: 27~420mm (1.1"~16.5")
  • Tilt Range: +3°~-12°
  • Swivel Range: +60°~-60°
  • Screen Level: +3°~-3°
click to view product pictures in table below
Item NO. Fit Screen Size VESA Compatible Weight Capacity Strength Tested Profile Tilt Range Swivel Range Screen Level
Modern Ultra-Slim Full-Motion TV Wall Mount
LPA83-446 		37"-75" 100x200, 200x200, 200x300, 300x200, 200x400, 400x200, 300x300, 300x400, 400x300, 400x400 60kg (132lbs) 4 Times Approved 27~420mm (1.1"~16.5") +3°~-12° +60°~-60° +3°~-3°
Modern Ultra-Slim Full-Motion TV Wall Mount
LPA83-466 		43"-90" 100x200, 200x200, 200x300, 300x200, 200x400, 400x200, 300x300, 300x400, 400x300, 600x200, 400x400, 600x300, 600x400 60kg (132lbs) 4 Times Approved 27~420mm (1.1"~16.5") +3°~-12° +60°~-60° +3°~-3°
