LRS17 Series

Elite Racing Simulator Cockpit & Wheel Stand

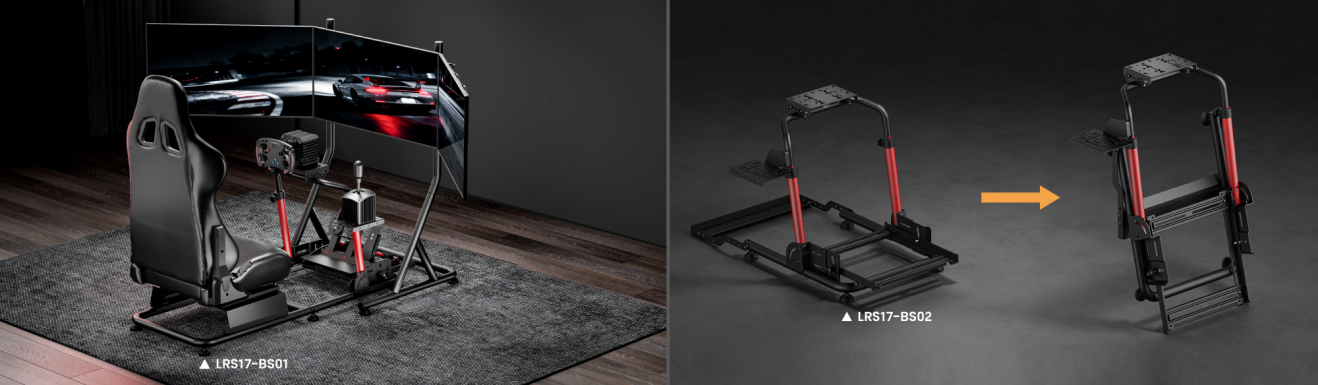

Elite Racing Simulator Cockpit & Wheel Stand LRS17 Series
LRS17-BS01
Elite Racing Simulator Cockpit Elite Racing Simulator Cockpit
  • Dimensions: 1372x655x1098mm (54"x25.8"x43.2")
  • Weight Capacity: 100kg (220lbs)
  • Seat Type: Reclining Seat with PVC Leather Cover
  • Seat Width: 450mm (17.7")
  • Seat Gliding Track: 180mm (7.1")
  • Seat Back Tilt Range: 45°~90°
  • Steering Wheel Panel Tilt Range: +29°/+14.5°/0°/-14.5°/-29°
  • Pedal Panel Tilt Range: 0°/+7.5°/+15°
  • Frame Material: Steel
  • Fit Driver Height: 1.3m~2m (4.3ft~6.6ft)
LRS17-BS02
  • Dimensions: 991x632x605~847mm (39"x24.9"x23.8"~33.3")
  • Weight Capacity: 20kg (44lbs)
  • Seat Type: N/A
  • Seat Width: N/A
  • Seat Gliding Track: N/A
  • Seat Back Tilt Range: N/A
  • Steering Wheel Panel Tilt Range: +29°/+14.5°/0°/-14.5°/-29°
  • Pedal Panel Tilt Range: 0°/+7.5°/+15°
  • Frame Material: Steel
  • Fit Driver Height: 1.5m~2m (4.9ft~6.6ft)
click to view product pictures in table below
Item NO. Dimensions Weight Capacity Seat Type Seat Width Seat Gliding Track Seat Back Tilt Range Steering Wheel Panel Tilt Range Pedal Panel Tilt Range Frame Material Fit Driver Height
Elite Racing Simulator Cockpit
LRS17-BS01 		1372x655x1098mm (54"x25.8"x43.2") 100kg (220lbs) Reclining Seat with PVC Leather Cover 450mm (17.7") 180mm (7.1") 45°~90° +29°/+14.5°/0°/-14.5°/-29° 0°/+7.5°/+15° Steel 1.3m~2m (4.3ft~6.6ft)
Elite Racing Simulator Wheel Stand
LRS17-BS02 		991x632x605~847mm (39"x24.9"x23.8"~33.3") 20kg (44lbs) N/A N/A N/A N/A +29°/+14.5°/0°/-14.5°/-29° 0°/+7.5°/+15° Steel 1.5m~2m (4.9ft~6.6ft)
