LPA86 Series

Cost-Effective Full-Motion TV Wall Mounts

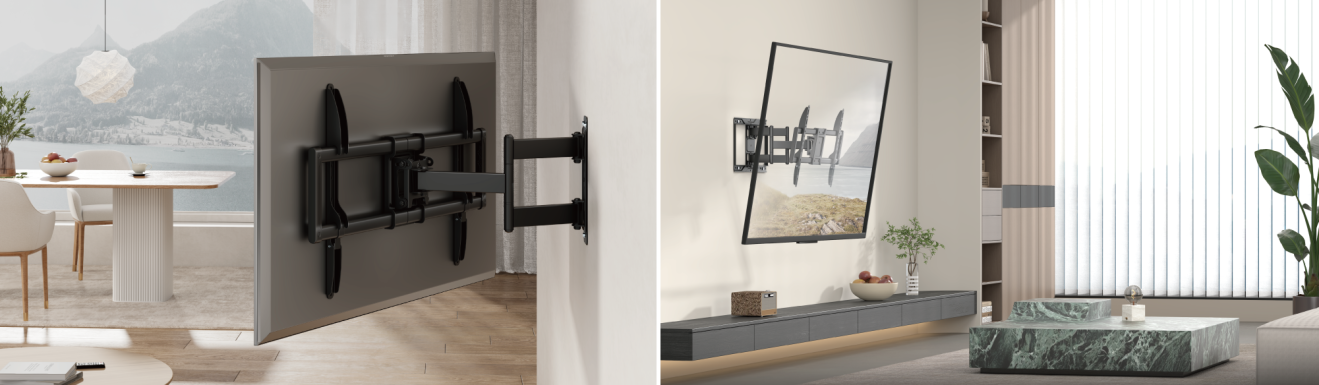

Cost-Effective Full-Motion TV Wall Mounts LPA86 Series
  • Fit Screen Size: 32"-75"
  • Max. Mounting Hole: 409x402
  • Weight Capacity: 50kg (110lbs)
  • Profile: 73~428mm (2.9"~16.9")
  • Tilt Range: +5°~-15°
  • Swivel Range: +90°~-90°
  • Screen Level: +3°~-3°
  • Installation: Solid Wall, Single Stud
  • Fit Screen Size: 37"-90"
  • Max. Mounting Hole: 609x402
  • Weight Capacity: 50kg (110lbs)
  • Profile: 73~428mm (2.9"~16.9")
  • Tilt Range: +5°~-15°
  • Swivel Range: +90°~-90°
  • Screen Level: +3°~-3°
  • Installation: Solid Wall, Single Stud
  • Fit Screen Size: 37"-90"
  • Max. Mounting Hole: 609x402
  • Weight Capacity: 50kg (110lbs)
  • Profile: 78~428mm (3.1"~16.9")
  • Tilt Range: +5°~-15°
  • Swivel Range: +90°~-90°
  • Screen Level: +3°~-3°
  • Installation: Solid Wall, Double Stud(406mm)
  • Fit Screen Size: 37"-90"
  • Max. Mounting Hole: 609x402
  • Weight Capacity: 75kg (165lbs)
  • Profile: 78~428mm (3.1"~16.9")
  • Tilt Range: +5°~-15°
  • Swivel Range: +60°~-60°
  • Screen Level: +3°~-3°
  • Installation: Solid Wall, Double Stud(406mm)
  • Fit Screen Size: 37"-90"
  • Max. Mounting Hole: 609x402
  • Weight Capacity: 75kg (165lbs)
  • Profile: 78~644mm (3.1"~25.4")
  • Tilt Range: +5°~-15°
  • Swivel Range: +60°~-60°
  • Screen Level: +3°~-3°
  • Installation: Solid Wall, Double Stud(406mm/450mm/600mm)
  • Fit Screen Size: 50"-100"
  • Max. Mounting Hole: 909x602
  • Weight Capacity: 75kg (165lbs)
  • Profile: 78~644mm (3.1"~25.4")
  • Tilt Range: +5°~-15°
  • Swivel Range: +60°~-60°
  • Screen Level: +3°~-3°
  • Installation: Solid Wall, Double Stud(406mm/450mm/600mm)
click to view product pictures in table below
Item NO. Fit Screen Size Max. Mounting Hole Weight Capacity Profile Tilt Range Swivel Range Screen Level Installation
LPA86-443 32"-75" 409x402 50kg (110lbs) 73~428mm (2.9"~16.9") +5°~-15° +90°~-90° +3°~-3° Solid Wall, Single Stud
LPA86-463 37"-90" 609x402 50kg (110lbs) 73~428mm (2.9"~16.9") +5°~-15° +90°~-90° +3°~-3° Solid Wall, Single Stud
LPA86-463D 37"-90" 609x402 50kg (110lbs) 78~428mm (3.1"~16.9") +5°~-15° +90°~-90° +3°~-3° Solid Wall, Double Stud(406mm)
LPA86-466 37"-90" 609x402 75kg (165lbs) 78~428mm (3.1"~16.9") +5°~-15° +60°~-60° +3°~-3° Solid Wall, Double Stud(406mm)
LPA86-466A 37"-90" 609x402 75kg (165lbs) 78~644mm (3.1"~25.4") +5°~-15° +60°~-60° +3°~-3° Solid Wall, Double Stud(406mm/450mm/600mm)
LPA86-696A 50"-100" 909x602 75kg (165lbs) 78~644mm (3.1"~25.4") +5°~-15° +60°~-60° +3°~-3° Solid Wall, Double Stud(406mm/450mm/600mm)
