PRB26 Series

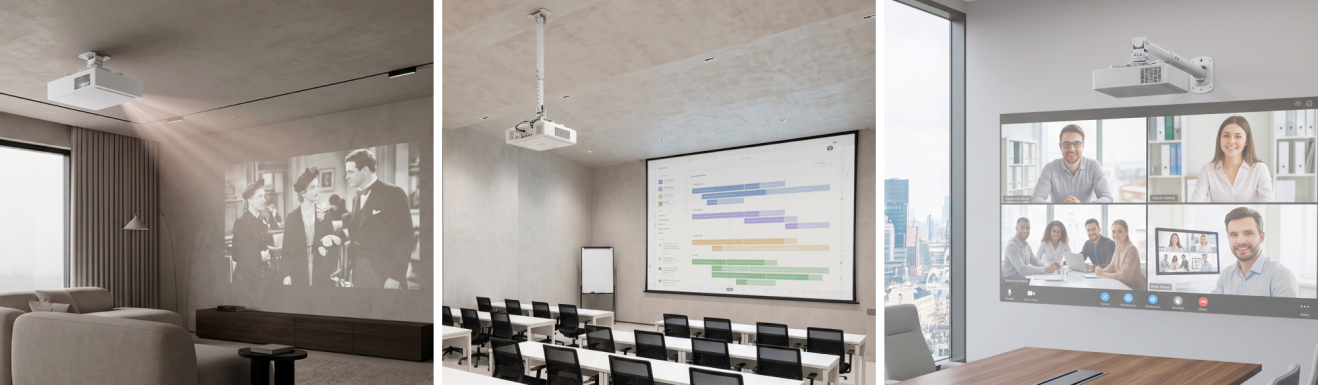

Cost-Effective Heavy-Duty Ceiling & Wall Projector Mounts

Cost-Effective Heavy-Duty Ceiling & Wall Projector Mounts PRB26 Series
PRB26-01
Low-Profile Cost-Effective Projector Ceiling Mount Low-Profile Cost-Effective Projector Ceiling Mount
  • Mounting Range: 85~380mm (3.3"~15")
  • Weight Capacity: 25kg (55lbs)
  • Extension Range: 97mm (3.8")
  • Tilt Range: +25°~-25°
  • Swivel Range: +25°~-25°
  • Rotation: 0°~+360°
  • Installation: Ceiling Mounted
  • Material: Steel, Plastic
  • Color: Matte White, Matte Black
PRB26-02
2-Section Cost-Effective Projector Ceiling Mount 2-Section Cost-Effective Projector Ceiling Mount
  • Mounting Range: 85~380mm (3.3"~15")
  • Weight Capacity: 25kg (55lbs)
  • Extension Range: 490~700mm (19.3"~27.6")
  • Tilt Range: +25°~-25°
  • Swivel Range: +25°~-25°
  • Rotation: 0°~+360°
  • Installation: Ceiling Mounted
  • Material: Steel, Plastic
  • Color: Matte White, Matte Black
PRB26-03
3-Section Cost-Effective Projector Ceiling Mount 3-Section Cost-Effective Projector Ceiling Mount
  • Mounting Range: 85~380mm (3.3"~15")
  • Weight Capacity: 25kg (55lbs)
  • Extension Range: 815~1025mm (32.1"~40.4")
  • Tilt Range: +25°~-25°
  • Swivel Range: +25°~-25°
  • Rotation: 0°~+360°
  • Installation: Ceiling Mounted
  • Material: Steel, Plastic
  • Color: Matte White, Matte Black
PRB26-04
Cost-Effective Short Throw Projector Wall Mount Cost-Effective Short Throw Projector Wall Mount
  • Mounting Range: 85~380mm (3.3"~15")
  • Weight Capacity: 25kg (55lbs)
  • Extension Range: 370~580mm (14.6"~22.8")
  • Tilt Range: +25°~-25°
  • Swivel Range: +25°~-25°
  • Rotation: 0°~+360°
  • Installation: Solid Wall, Single Stud
  • Material: Steel, Plastic
  • Color: Matte White, Matte Black
click to view product pictures in table below
Item NO. Mounting Range Weight Capacity Extension Range Tilt Range Swivel Range Rotation Installation Material Color
Low-Profile Cost-Effective Projector Ceiling Mount
PRB26-01 		85~380mm (3.3"~15") 25kg (55lbs) 97mm (3.8") +25°~-25° +25°~-25° 0°~+360° Ceiling Mounted Steel, Plastic Matte White, Matte Black
2-Section Cost-Effective Projector Ceiling Mount
PRB26-02 		85~380mm (3.3"~15") 25kg (55lbs) 490~700mm (19.3"~27.6") +25°~-25° +25°~-25° 0°~+360° Ceiling Mounted Steel, Plastic Matte White, Matte Black
3-Section Cost-Effective Projector Ceiling Mount
PRB26-03 		85~380mm (3.3"~15") 25kg (55lbs) 815~1025mm (32.1"~40.4") +25°~-25° +25°~-25° 0°~+360° Ceiling Mounted Steel, Plastic Matte White, Matte Black
Cost-Effective Short Throw Projector Wall Mount
PRB26-04 		85~380mm (3.3"~15") 25kg (55lbs) 370~580mm (14.6"~22.8") +25°~-25° +25°~-25° 0°~+360° Solid Wall, Single Stud Steel, Plastic Matte White, Matte Black
