PLB-CE8-0522

23”-42” Back to Back TV Ceiling Mount VESA Panel

Compatible with PLB-CE8 Series TV Ceiling Mount
Description

PLB-CE8-0522 is a back to back ceiling mount head designed to offer the ultimate in versatility and universal compatibility with load capacity of 50kg/110lbs. Connected with fixed or tilt ceiling plate and extension tube for flat/bevel roof installation. It is the perfect solution for retail and commercial displays, offering 5°tilt up and 12°tilt down even 360°rotation around the pole. It combines advanced cable management features and ceiling mount covers to ensure an elegant and tidy look. Max. VESA 200x200 hole pattern.

FEATURES
  • Free-Tilting Design: for multiple monitor viewing angles
  • 360° Rotation Around the Pole: provides optimal viewing
  • Cable Management: keeps everything organized
SPECIFICATION
Product Category: TV Ceiling Mount
Rank: Standard
Material: Steel,Aluminum
Surface Finish: Powder Coating
Color: Fine Texture Black

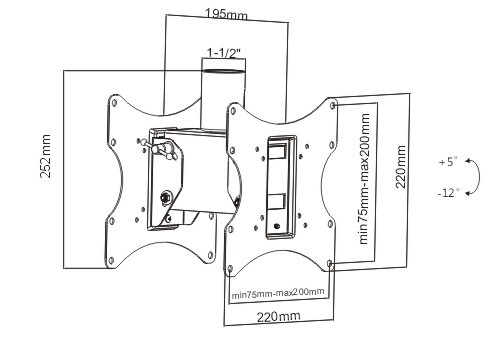

Dimensions: 195x220x252mm (7.7"x8.7"x9.9")
Fit Screen Size: 23"-42"
Mounting Hole Pattern : VESA & Universal
VESA Compatible: 75x75,100x100,200x100,200x200
Max. VESA: 200×200mm
Weight Capacity: 50kg (110lbs)
Strength Tested: 4 Times Approved
Profile: 195mm (7.7")
Tilt Range: +5°~ -12°
Installation: Solid Wall
Cable Management: No
Bubble Level: No
Instruction Manual Included: Yes
By Function: Tilting
