LED-1546

No Stud TV Hanger Mount

Fits All Wall Types Installation
Description

The perfect mount for all wall types including brick, wood stud, drywall, sheetrock or plaster. Hanging system allows the simple and quick installation. It also supports 5 degrees tilt by removing the spacers behind. For a clean appearance, this mount extends only 1.2", nearly as thin as a picture frame. Also, user-friendly design including spring lock and direction indicator contributes to a wonderful using experience. Don't’ let the absence of studs limit your wall mounting, this product is your ideal choice!

FEATURES
  • Slim Design: provides low profile

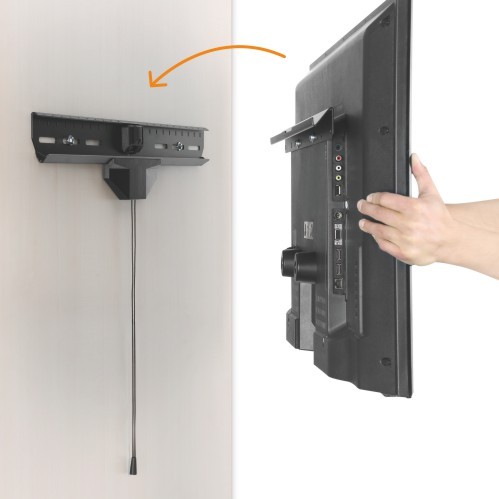

  • Picture Hanging Style: for a quick and easy installation
  • Automatic Spring Locks with Quick Release Cords: prevents TV from removal when fixing
  • Direction Indicator: assures correct installation
  • Tilting Platform: allows for optimum comfort
SPECIFICATION
Product Category: Fixed TV Wall Mount
Rank: Standard
Material: Steel,Plastic
Metal Sheet Thickness: VESA Panel THK=2mm cold-rolled sheet,Wall Plate THK=2mm cold-rolled sheet (VESA Panel THK=0.079" cold-rolled sheet,Wall Plate THK=0.079" cold-rolled sheet)
Surface Finish: Powder Coating
Color: Matte Black

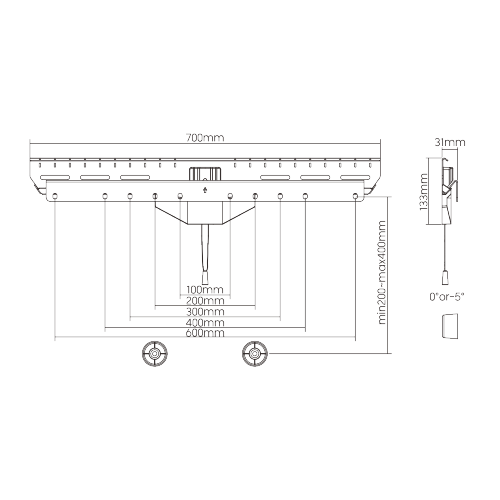

Dimensions: 31x700x133mm (1.2"x27.6"x5.2")
Fit Screen Size: 37"-80"
Fit Curved TV: Yes
Mounting Hole Pattern : VESA Only
VESA Compatible: 200x200, 300X200, 300X300, 400x200, 400X300, 400x400, 600x400
Max. VESA: 600x400mm
Weight Capacity: 50kg (110lbs)
Strength Tested: 4 Times Approved

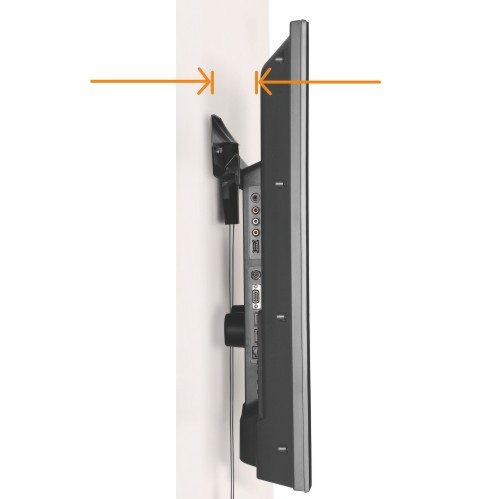

Profile: 31mm (1.2")

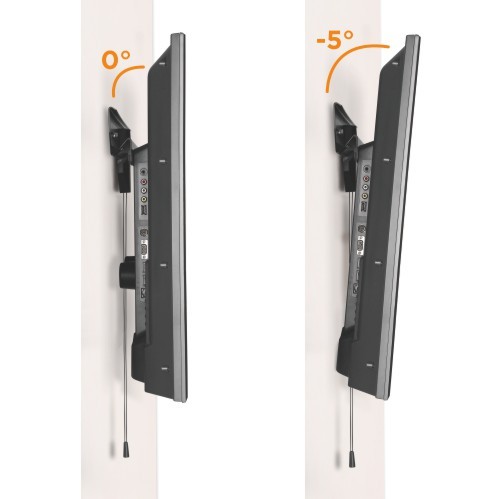

Tilt Range: 0°/-5°
Installation: Double Stud(406mm/450mm/600mm),Solid Wall,Drywall(T≥10mm)
Panel Type: Detachable Panel
Wall Plate Type: Fixed Wall Plate
Direction Indicator: Yes
Cable Management: No
Bubble Level: No
Accessory Kit Package: Compartment Polybag
Instruction Manual Included: Yes
Power Plug Included: No
Magnetic: No
Lithium Battery: No
By Function: Fixed
