LP38-44T

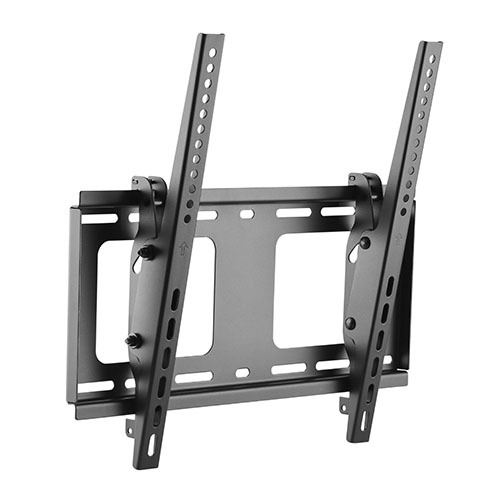

Classic Heavy-duty Tilting Curved & Flat Panel TV Wall Mount

For most 32''-55" curved & flat panel TVs
Description

Easy to use and install, the super solid model LP38-44T is designed to fit any 32''-55" curved & flat panel TVs up to 80kg/176lbs. This unit mounts in tilting position and tilts up to a 10° to position the screen for an optimal viewing experience. Open architecture provides superior ventilation and easy access for wiring.

FEATURES
  • Easy Assembly: Installation is as easy as 1-2-3
  • Open Architecture: provides increased ventilation and easier access to wires
SPECIFICATION
Product Category: Tilt TV Wall Mount
Rank: Standard
Material: Steel
Metal Sheet Thickness: Bracket Arm THK=1.5mm cold-rolled sheet,Wall Plate THK=2mm cold-rolled sheet (Bracket Arm THK=0.059" cold-rolled sheet,Wall Plate THK=0.079" cold-rolled sheet)
Surface Finish: Powder Coating
Color: Fine Texture Black

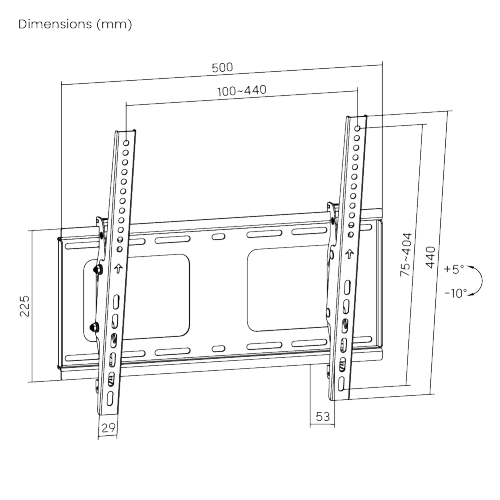

Dimensions: 500x225x53mm (19.7"x8.9"x2.1")
Fit Screen Size: 32"-55"
Fit Curved TV: Yes
Mounting Hole Pattern : VESA & Universal
VESA Compatible: 200x200,300x300,400x200,400x400
Max. VESA: 440x404mm
Weight Capacity: 80kg (176lbs)
Strength Tested: 4 Times Approved
Profile: 53mm (2.1")
Tilt Range: +5°~-10°
Screen Freely Tilting: Yes
Installation: Solid Wall,Double Stud(406mm)
Panel Type: Detachable Panel
Wall Plate Type: Fixed Wall Plate
Cable Management: No
Anti-theft: No
Accessory Kit Package: Compartment Polybag
Instruction Manual Included: Yes
Certification: GS UL
By Function: Tilting
BROCHURE

LP38 Series Anti-theft Heavy-duty Tilting Wall Mount

VIDEO

LP38-44T Classic Heavy-duty Tilting Curved & Flat Panel TV Wall Mount Installation Video
