LP57-46T

Ultra-Slim Tilt TV Wall Mount

Fits 37"-70" TV
Description

The new LP57-46T takes the ultra-slim TV mount to a new level. With a distance of 18mm(0.71”) to the wall, it nearly turns your TV into a picture on the wall. The innovative fine-tuning design allows for easy post-installation positioning. The toolless tilting mechanism will greatly reduce eye and neck pain and annoying sun glare for perfect viewing experience. Also, the magnetic design in the bracket and the strap end also add a modern look to your house!

FEATURES
  • Lateral Shift Brackets: enable fast alignment
  • Toolless Tilt: allows for effortless positoning
  • Magnetic Strap End: hides itself when not in use.
  • Auto-locking Magnetic Design: firmly holds the TV in 0 gap position.
  • Built-In Level Adjustment: ensures perfect positioning
  • Automatic Spring Locks with Quick Release Cords: prevents TV from removal when fixing
SPECIFICATION
Product Category: Tilt TV Wall Mount
Rank: Standard
Material: Steel,Plastic
Metal Sheet Thickness: Wall Plate THK=1.5mm cold-rolled sheet,Bracket Arm THK=2mm pickling sheet (Wall Plate THK=0.059" cold-rolled sheet,Bracket Arm THK=0.079" pickling sheet)
Surface Finish: Electroplating,Powder Coating,Electrophoresis
Color: Matte Black

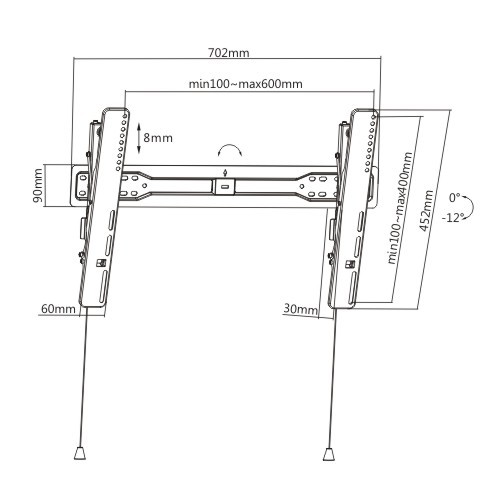

Dimensions: 30x702x450mm (1.2"x27.6"x17.7")
Fit Screen Size: 37"-70"
Fit Curved TV: Yes
Mounting Hole Pattern : VESA & Universal
VESA Compatible: 200x200, 300X200, 300X300, 400x200, 400X300, 400x400, 600x400
Max. VESA: 620x420mm
Weight Capacity: 35kg (77lbs)
Strength Tested: 4 Times Approved
Profile: 30mm (1.2")
Tilt Range: 0°~-12°
Screen Level: 8mm
Screen Freely Tilting: Yes
Installation: Double Stud(406mm/450mm/600mm),Solid Wall
Panel Type: Detachable Panel
Wall Plate Type: Fixed Wall Plate
Cable Management: No
Anti-theft: No
Bubble Level: Built-in Bubble Level (Integrated on Wall Plate)
Accessory Kit Package: Normal/Ziplock Polybag,Compartment Polybag
Instruction Manual Included: Yes
Patent: 2017306741685
Power Plug Included: No
Magnetic: Yes
Lithium Battery: No
By Function: Tilting
BROCHURE

LP57 Series-Ultra-Slim TV Wall Mount
