Elegant Full-motion TV Wall Mount KMA28-466D For most 37"-70" LED, LCD flat panel TVs from china(chinese)

KMA28-466D

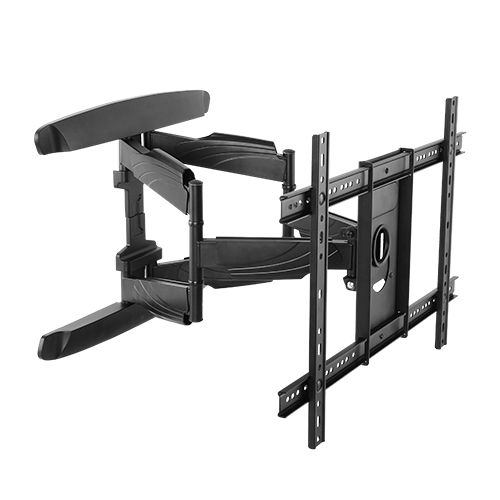

Elegant Full-motion TV Wall Mount

For most 37"-70" LED, LCD flat panel TVs

Description

The KMA28-466D is a full-motion wall mount for most 37"-70" LED, LCD flat panel TVs up to 45kg/99lbs. The arm can be stretched up to 517.5mm for a full range of movement- you can be easy to tilt, extend, fold and swivel your TV and any viewing angle whatever you wanted. The wall plate cover of TV mount and cable hidden system looked more luxury and nice, also made the TV cable behind your TV neatly. Its built-in level adjustment offers 5° clockwise and counterclockwise turning to ensure it is perfectly level. Compatible with VESA hole up to 600x400. For 406mm/ 450mm stud.

Tag:

Color:

Fine Texture Black

Add to Inquiry

Add to Compare

View Series

Duty Calculator

FEATURES

●Snap-in VESA Plate: makes installations easier
●Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare
●Swiveling Arm(s): offer(s) maximum viewing flexibility (makes every seat the best seat)
●Built-In Level Adjustment: ensures perfect positioning
●Cable Management: keeps everything organized

Snap-in VESA Plate: makes installations easier
Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare
Swiveling Arm(s): offer(s) maximum viewing flexibility (makes every seat the best seat)
Built-In Level Adjustment: ensures perfect positioning
Cable Management: keeps everything organized

SPECIFICATIONS

Product Category:	Full-motion TV Wall Mount
Rank:	Standard
Material:	Steel,Plastic
Metal Sheet Thickness:	Wall Panel 2mm,Panel 1.5mm,Pipe 1.2mm (Wall Panel 0.079",Panel 0.059",Pipe 0.047")
Pipe Size:	40x20x1.2mm (1.6"x0.79"x0.047")
Surface Finish:	Powder Coating
Color:	Fine Texture Black

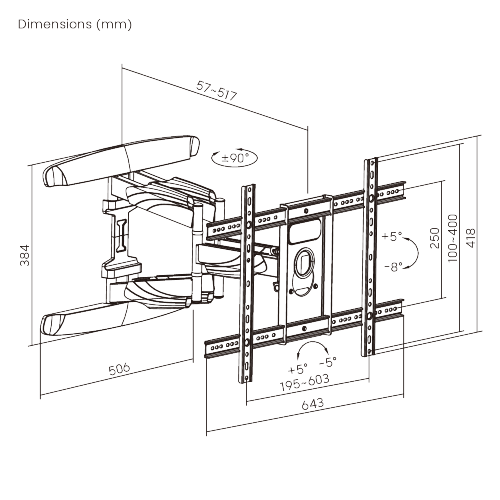

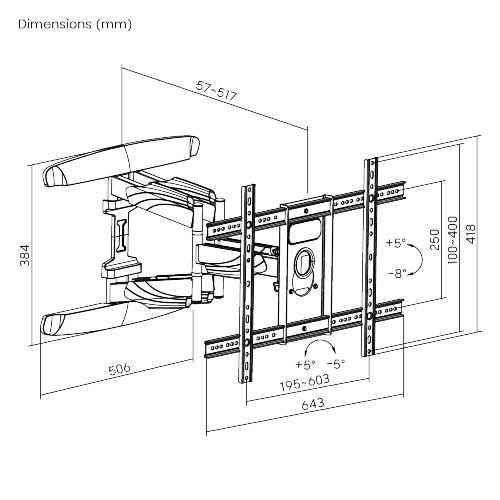

Dimensions:	517x643x418mm (20.4"x25.3"x16.5")
Fit Screen Size:	37"-70"
Fit Curved TV:	Yes
Mounting Hole Pattern :	VESA & Universal
VESA Compatible:	200x200,300x200,400x200,300x300,400x300,400x400,600x400
Max. Mounting Hole:	600x400
Weight Capacity:	45kg (99lbs)

Strength Tested:	3 Times Approved
Profile:	57~517mm (2.2"~20.4")
Tilt Range:	＋5°～-8°
Swivel Range:	+90°~-90°
Screen Level:	+5°~-5°
Screen Freely Tilting:	No
Installation:	Solid Wall,Double Stud(406mm/450mm)
Panel Type:	Detachable Panel
Wall Plate Type:	Fixed Wall Plate
Cable Management:	Yes
Anti-theft:	No
Bubble Level:	No
Accessory Kit Package:	Compartment Polybag

Product Category:	Full-motion TV Wall Mount
Rank:	Standard
Material:	Steel,Plastic
Metal Sheet Thickness:	Wall Panel 2mm,Panel 1.5mm,Pipe 1.2mm (Wall Panel 0.079",Panel 0.059",Pipe 0.047")
Pipe Size:	40x20x1.2mm (1.6"x0.79"x0.047")
Surface Finish:	Powder Coating
Color:	Fine Texture Black
Dimensions:	517x643x418mm (20.4"x25.3"x16.5")
Fit Screen Size:	37"-70"
Fit Curved TV:	Yes
Mounting Hole Pattern :	VESA & Universal
VESA Compatible:	200x200,300x200,400x200,300x300,400x300,400x400,600x400
Max. Mounting Hole:	600x400
Weight Capacity:	45kg (99lbs)

Strength Tested:	3 Times Approved
Profile:	57~517mm (2.2"~20.4")
Tilt Range:	＋5°～-8°
Swivel Range:	+90°~-90°
Screen Level:	+5°~-5°
Screen Freely Tilting:	No
Installation:	Solid Wall,Double Stud(406mm/450mm)
Panel Type:	Detachable Panel
Wall Plate Type:	Fixed Wall Plate
Cable Management:	Yes
Anti-theft:	No
Bubble Level:	No
Accessory Kit Package:	Compartment Polybag
