LDA11-113

Economy Full-motion TV Wall Mount

For most 13’’-27’’ LED, LCD flat panel TVs

Description

The popular model LDA11-113 is designed to fit any 13’’-27’’ Flat Panel TV up to 30kgs/66lbs. Simple construction allow easy installation. Adjustable swivel arm and tilting VESA plate provides maximum viewing flexibility. Cable clips included keep cables organized. Key hole VESA plate allows TVs to be easily installed. VESA compatible with 75x75, 100x100.

Tag:

Color:

Fine Texture Black

Add to Inquiry

Add to Compare

View Series

Duty Calculator

FEATURES

●Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare
●Swiveling Arm(s): offer(s) maximum viewing flexibility (makes every seat the best seat)
●Keyhole Pattern: allows for easy installation
●Cable Management: keeps everything organized

Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare
Swiveling Arm(s): offer(s) maximum viewing flexibility (makes every seat the best seat)
Keyhole Pattern: allows for easy installation
Cable Management: keeps everything organized

SPECIFICATIONS

Product Category:	Full-motion TV Wall Mount
Rank:	Standard
Material:	Steel,Plastic
Metal Sheet Thickness:	VESA Panel THK=1.5mm cold-rolled sheet,Wall Plate THK=2.5mm pickling sheet (VESA Panel THK=0.059" cold-rolled sheet,Wall Plate THK=0.098" pickling sheet)
Pipe Size:	30x15x1.2mm Square Steel Tube (1.2"x0.59"x0.047" Square Steel Tube)
Surface Finish:	Powder Coating
Color:	Fine Texture Black

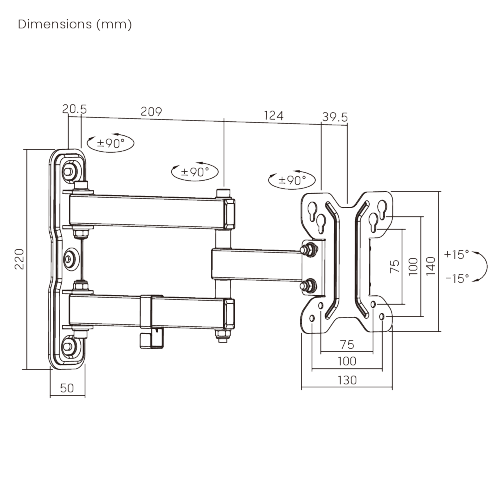

Dimensions:	393x130x220mm (15.5"x5.1"x8.7")
Fit Screen Size:	13"-27"
Fit Curved TV:	No
Mounting Hole Pattern :	VESA Only
VESA Compatible:	75x75,100x100
Max. Mounting Hole:	100x100

Weight Capacity:	30kg (66lbs)
Strength Tested:	3 Times Approved
Profile:	49~393mm (1.9"~15.5")
Tilt Range:	+15°~-15°
Swivel Range:	+90°~-90°
Screen Freely Tilting:	Yes
Installation:	Solid Wall,Single Stud
Panel Type:	Fixed Panel
Wall Plate Type:	Fixed Wall Plate
Cable Management:	Yes
Anti-theft:	No
Bubble Level:	No
Accessory Kit Package:	Normal/Ziplock Polybag,Compartment Polybag

Product Category:	Full-motion TV Wall Mount
Rank:	Standard
Material:	Steel,Plastic
Metal Sheet Thickness:	VESA Panel THK=1.5mm cold-rolled sheet,Wall Plate THK=2.5mm pickling sheet (VESA Panel THK=0.059" cold-rolled sheet,Wall Plate THK=0.098" pickling sheet)
Pipe Size:	30x15x1.2mm Square Steel Tube (1.2"x0.59"x0.047" Square Steel Tube)
Surface Finish:	Powder Coating
Color:	Fine Texture Black
Dimensions:	393x130x220mm (15.5"x5.1"x8.7")
Fit Screen Size:	13"-27"
Fit Curved TV:	No
Mounting Hole Pattern :	VESA Only
VESA Compatible:	75x75,100x100
Max. Mounting Hole:	100x100

Weight Capacity:	30kg (66lbs)
Strength Tested:	3 Times Approved
Profile:	49~393mm (1.9"~15.5")
Tilt Range:	+15°~-15°
Swivel Range:	+90°~-90°
Screen Freely Tilting:	Yes
Installation:	Solid Wall,Single Stud
Panel Type:	Fixed Panel
Wall Plate Type:	Fixed Wall Plate
Cable Management:	Yes
Anti-theft:	No
Bubble Level:	No
Accessory Kit Package:	Normal/Ziplock Polybag,Compartment Polybag
